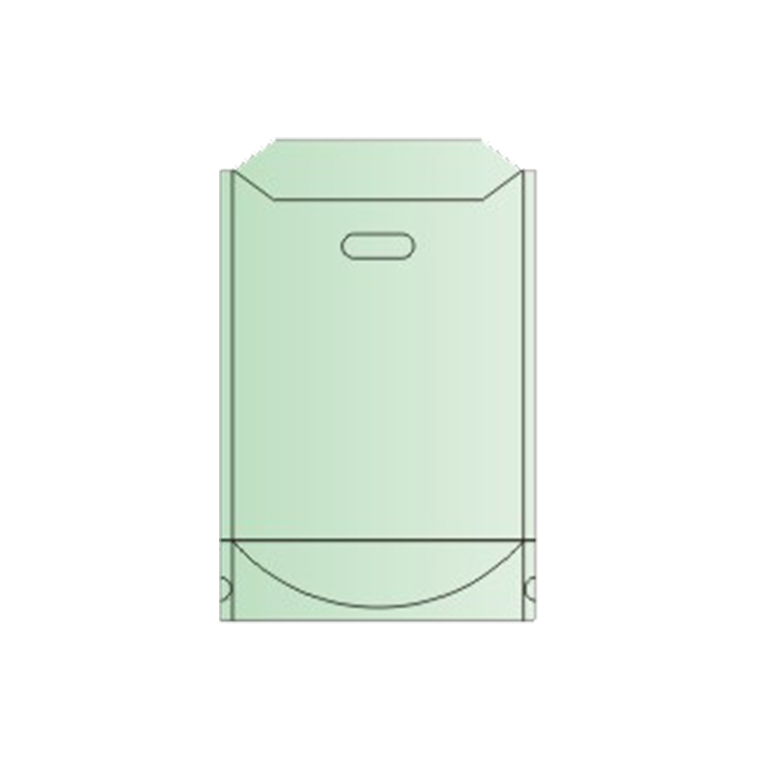

Three-film Insert Stand-up PouchApplicable Bag Types
View All Bag Types →Three-film Insert Stand-up Pouch

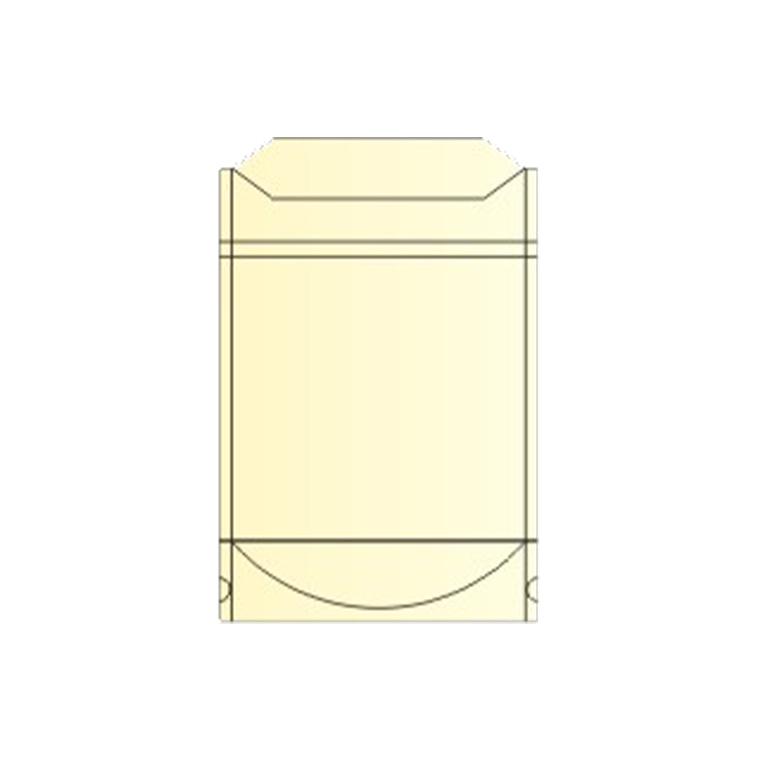

Single-film Insert Stand-up Pouch with Zipper

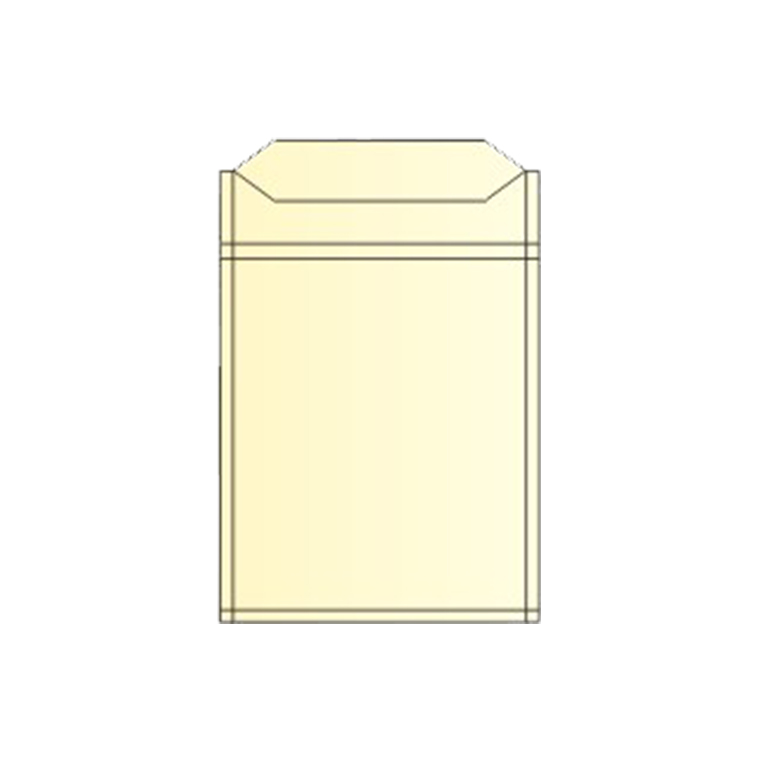

Folded Bag Series

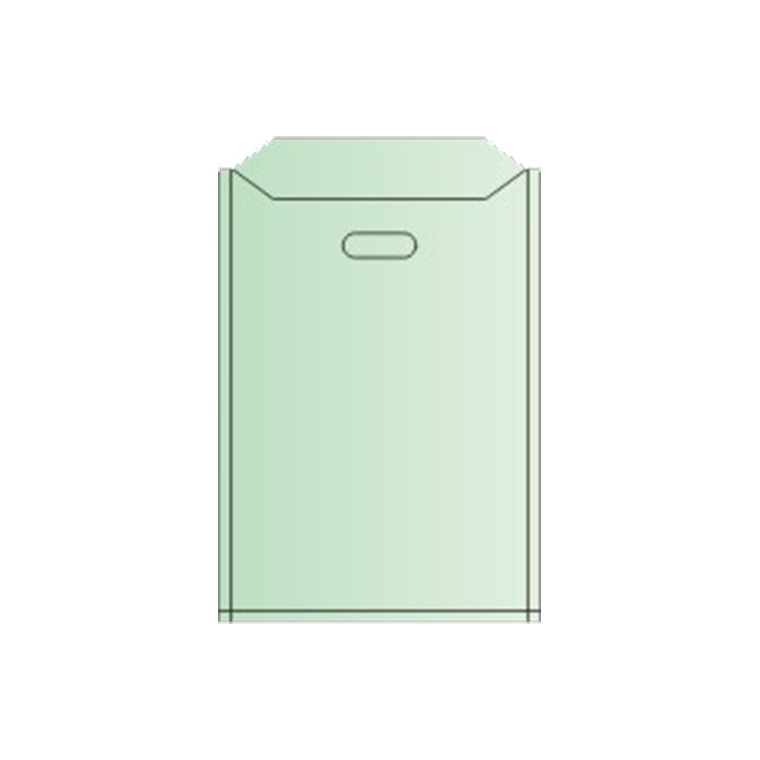

Three-side Seal BagProduction Process
Machine Features
1Advanced Thermal System
- 22 heating zones, 0-300°C, SSF-Ⅱ control
2High Orientation Accuracy
- ±0.5 mm registration
3Wide Material Range
- BOPP / CPP / PET / nylon / aluminum-foil laminates
4Multi-Bag Versatility
- Three-side seal, zipper, stand-up, stand-up zipper pouches

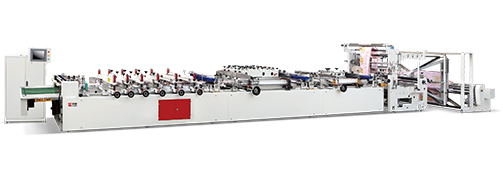

ModelKQ-600C+FD
Width of unwinding1200mm
Pouch-making Length70-380mmxN（N≤6）
Pouch-making Width70-580mm
Speed40-150pcs/min
Set film dragging speed30m/min
Total powerabout 48.0kw
Machine dimensions14000×2350×2000mm
Bag making functionthree side sealing bag
Zipper bag
Stand up bag( single web film and bottom gusset)
Stand up bag(another film insert bottom)
Stand up zipper bag
Suitable materialthis machine is suitable for producing multi-layer three side sealing laminated film, plating ALU laminated film, paper-plastic laminated film, pure-ALU laminated film which takes BOPP, CPP,PET, ALU, and Nylon etc plastic laminated film as base material.
The speed of machine150 hypo-minute
The speed of feeding≤35 m/min (decided according the material)
The length of bag makingPlease check my following detail table
The width of bag makingPlease check my following detail table
The speed of bag makingPlease check my following detail table
The dimension of roll materialф600*1200mm (diameter* web-width)
Accuracy of orientation≤± 0.5mm
Thermal-sealing knife’s quantity of heat1. Vertical-sealing for zipper adopts 1 group for heating fluctuation,
2. Vertical-sealing for side sealing adopt 5 groups for heating fluctuation, cooling fluctuation from up and down
3. Zipper flattening adopt 2 groups heating.
4. Bottom sealing adopts 3groups heating,1 group for cooling
The quantity of temperature heating22
The bound of temperature0-300 ℃
Weight of machineAbout 4800 kg
Colorwhite of cover + red door
The type of control systemSSF-Ⅱ High speed laminating film bag making machine control system
NoticeThe cooling water for zipper sealing must be have!!
Configurable and optional features (all adjustable per the KQ-600C+FD design).
