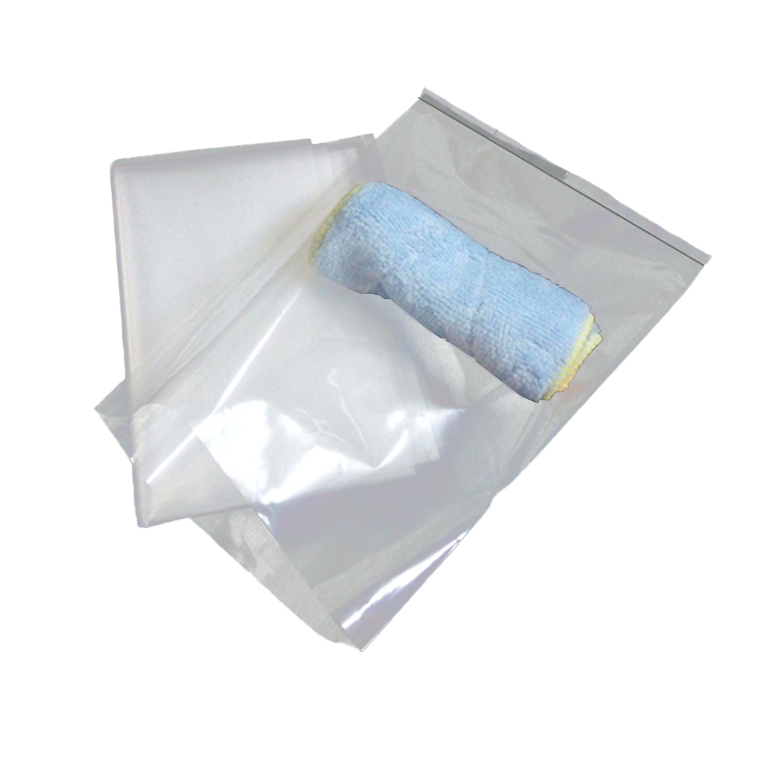

Bottom Seal BagApplicable Bag Types
View All Bag Types →Bottom Seal BagProduction Process
Machine Features
1PLC Servo Control
- Automatic, fast, precise
2Material Range
- LDPE / HDPE / CPP
3Flexible Web Count
- 1, 2 or 4 lines selectable
44-Line Simultaneous
- Up to 4 webs for flat bottom-seal bags at once

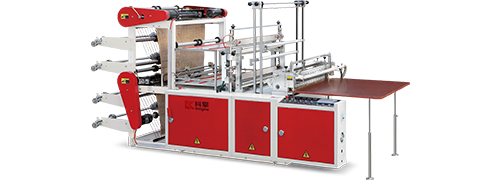

ModelKQ-400BSC-4L
Bag‑making ModeBottom‑seal Flat Open Bag
Bag‑making Length200‑1500 mm
Bag‑making Width400 mm × 4L
MaterialsLDPE / HDPE
Film Thickness0.01‑0.12 mm
Mechanical Speed15‑160 cycles/min
Nominal Feeding Line Speed40 m/min
Main Drive StructureCoaxial Eccentric
Main Motor1500 W
Feeding Servo Motor2.0 kW × 1 set
Inverter:1.5 kW
Tension ControlAutomatic Control
Print Mark TrackingPhoto‑electric sensor (SICK, Germany)
Electrical ControlPLC Controller
Total Power5.5 kW
Machine Overall Dimension (approx.)5500×1240×1600 mm
Machine Weight (approx.)1100 kg
Configurable and optional features (all adjustable per the KQ-400BSC-4L design).
Download brochures, certificates and technical files for KQ-400BSC-4L.
