Center SealKQ-600A
KQ‑600A Three‑side Seal (Center‑seal) Multi‑functional Bag Making Machine
Multi-function machine for three-side-seal and center-seal (middle-seal) pouches. Accurate registration, servo control and flexible size range for food, pharmaceutical and daily-use packaging.
Max Speed—
Bag Width—
Working Lines—
Control SystemPLC + Touch Screen
Applicable Bag Types

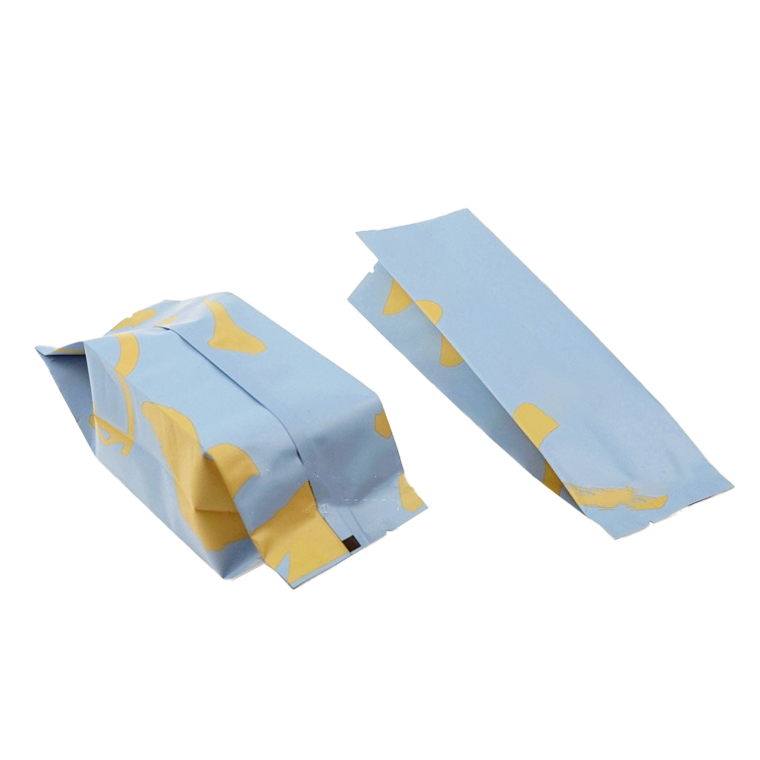

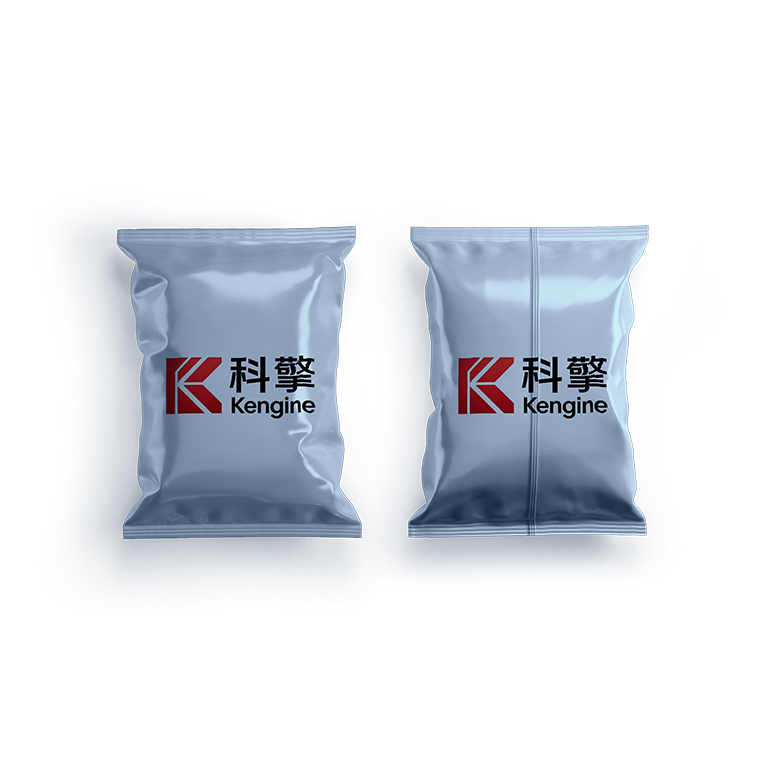

View All Bag Types →Center Seal
Center Seal

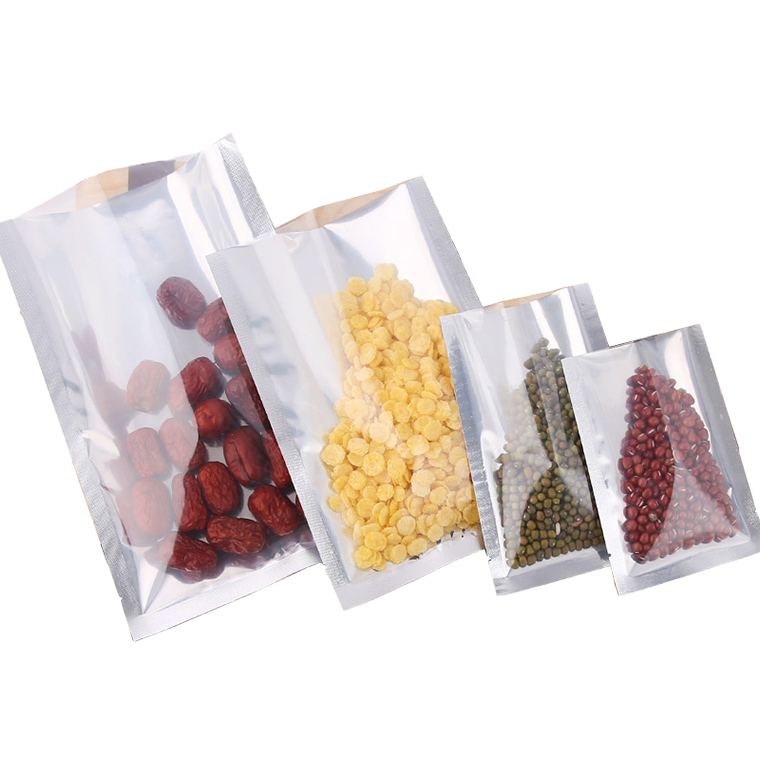

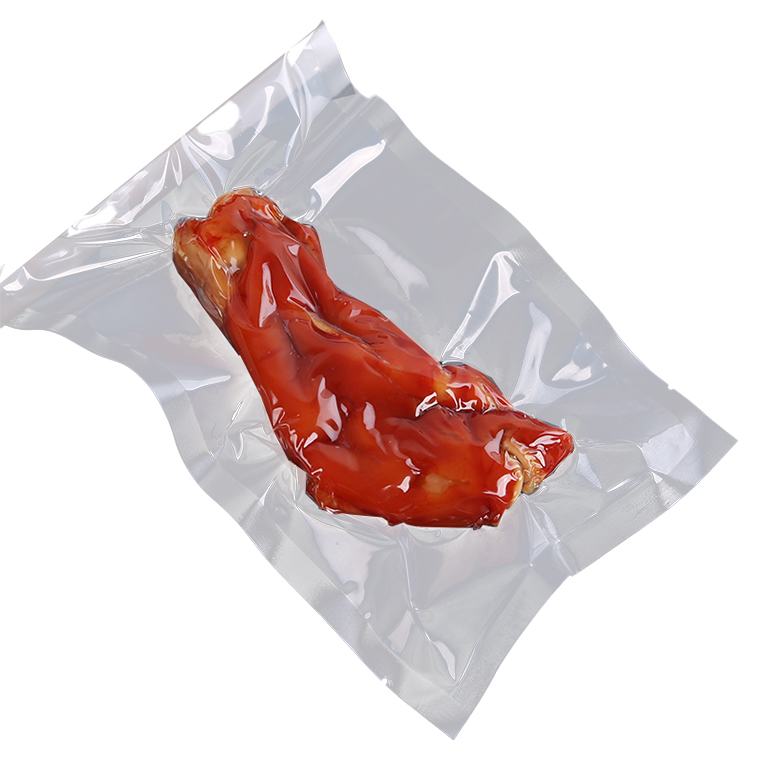

Open‑top 3‑side Seal Pouch
Open‑top 3‑side Seal PouchProduction Process
Machine Features
Bag making functionThree side sealing bag Middle sealing bag
Main electric scheme2 servo motor from JAPAN, with PLC used panasonic from Japan, Touch Screen from Taiwan; main driving is alternating current with yaskawa from JAPAN inverter automatic constant tension for unwinding.
Suitable materialthis machine is suitable for producing multi-layer three side sealing laminated film, plating ALU laminated film, paper-plastic laminated film, pure-ALU laminated film which takes BOPP, CPP,PET, ALU, and Nylon etc plastic laminated film as base material.
Thermal-sealing knife’s
quantity of heat1. Vertical-sealing for side sealing adopt 5 groups for heating fluctuation, cooling fluctuation from up and down 3. Bottom sealing adopts 3 group heating , 1 group for cooling
quantity of heat1. Vertical-sealing for side sealing adopt 5 groups for heating fluctuation, cooling fluctuation from up and down 3. Bottom sealing adopts 3 group heating , 1 group for cooling
The quantity of temperature heating16
The bound of temperature0-300 ℃
Total power35kw
Overall Dimension(L*W*H) 8000×2150×1800mm
Weight of machineAbout 4300 kg
Colorwhite of cover, white blue of fuselage+ red door
The type of control systemSSF-Ⅱ High speed laminating film bag making machine control system
solid state relay22pcs
Configurable and optional features (all adjustable per the KQ-600A design).
Download brochures, certificates and technical files for KQ-600A.
