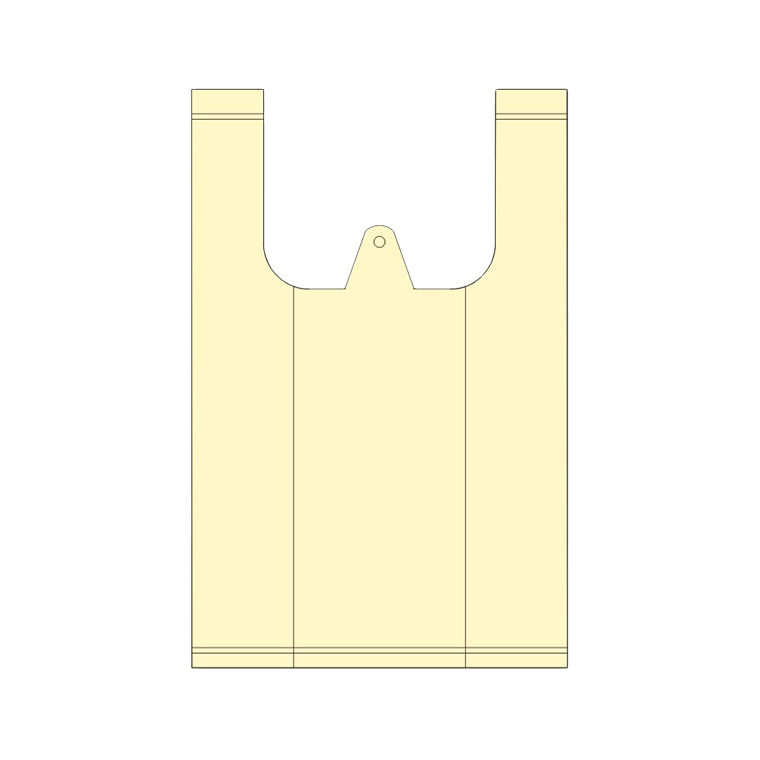

Vest Bag (T-shirt Bag)Applicable Bag Types
View All Bag Types →Vest Bag (T-shirt Bag)Production Process

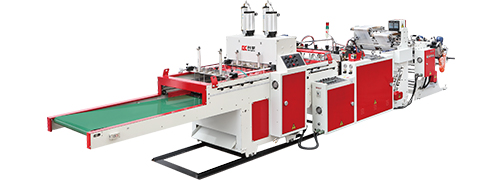

Machine Features
1T-Shirt Bag Specialist
- Purpose-built for vest/T-shirt bag mass production
2Easy Operation
- User-friendly control with a high finished-product rate
3High-Speed Servo Drive
- Dedicated servo system ensures accuracy and stability under high-speed running
4Dual-Line Output
- Two parallel lines double production capacity versus single-line machines

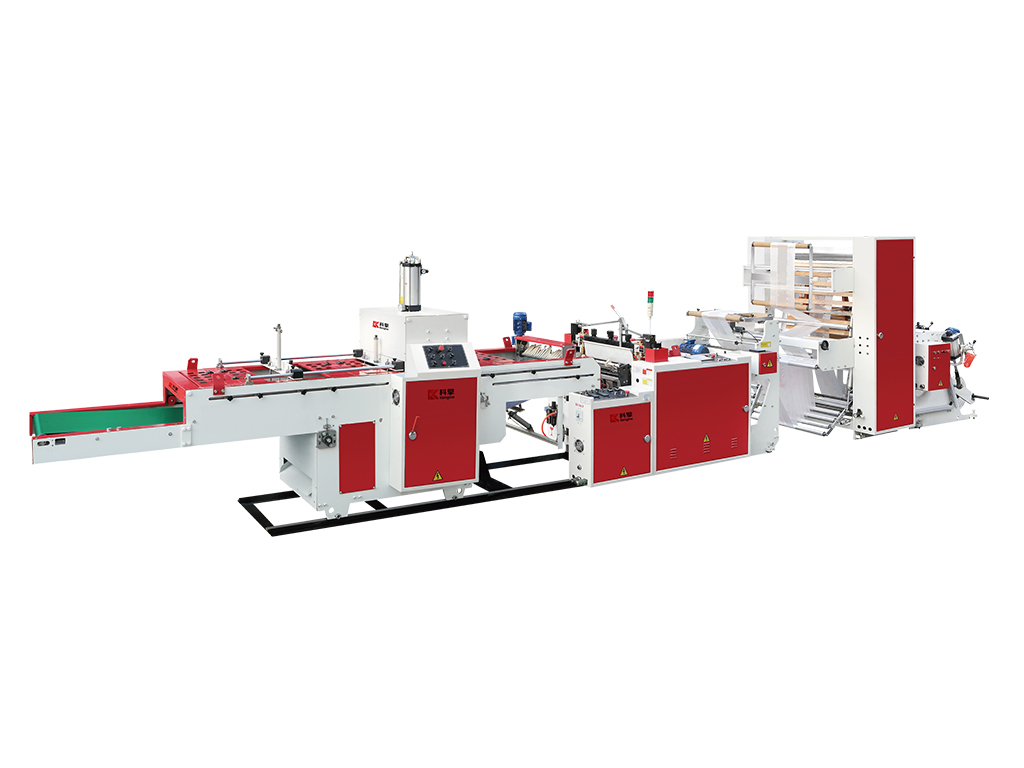

ModelKQ‑400V2
Sealing TypeDouble‑line sealing
Number of Bag‑making Lanes2 lanes
Web Running DirectionRight‑to‑Left
Unwinding Width400 mm
Unwinding DiameterΦ1000 mm
Film ThicknessHDPE 0.008‑0.03 mm
LDPE 0.02‑0.05 mm
Bag‑making Width (Bag Width)400 mm
Bag‑making Length (Bag Height)350‑700 mm
Production Speed250 pcs/min
Pulling Speed125 m/min
Total Power18.5 kW
Power Supply380V, 50Hz
Machine Overall Dimension8000×1850×1800 mm
Machine Weight3100 kg
Compressed Air7 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-400V2 design).
Download brochures, certificates and technical files for KQ-400V2.
Send Us an Inquiry
Please fill in the form below and our sales team will contact you as soon as possible.
Need the Full Brochure?
Get the complete KQ-400V2 brochure and operation manual with all drawings and specs.
Applications
Send Us an Inquiry
Please fill in the form below and our sales team will contact you as soon as possible.
Get Quotation or Technical Proposal
Tell us your production capacity and application. We will recommend the suitable machine and solution.
