Patch Handle BagApplicable Bag Types

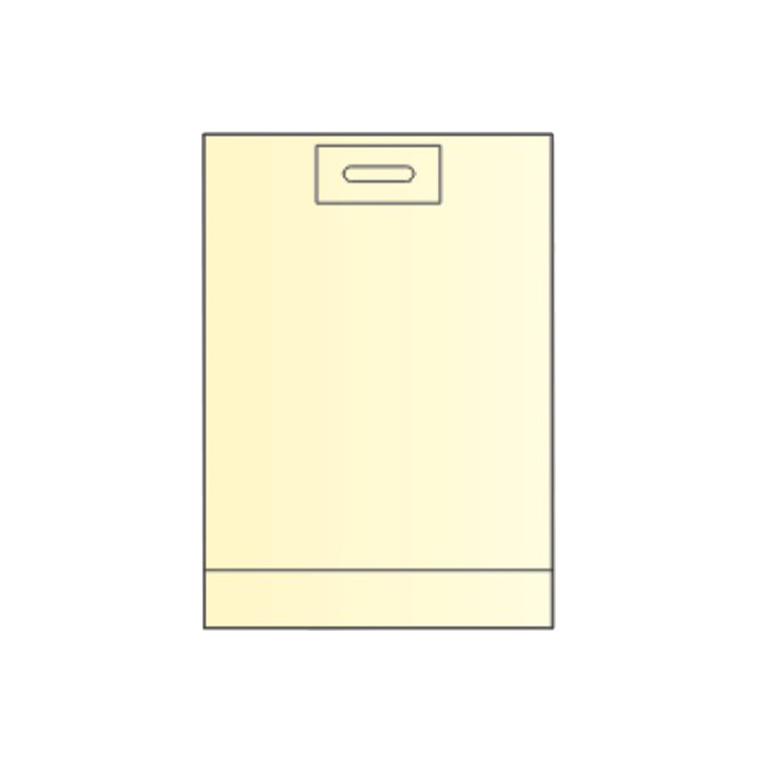

View All Bag Types →Patch Handle Bag

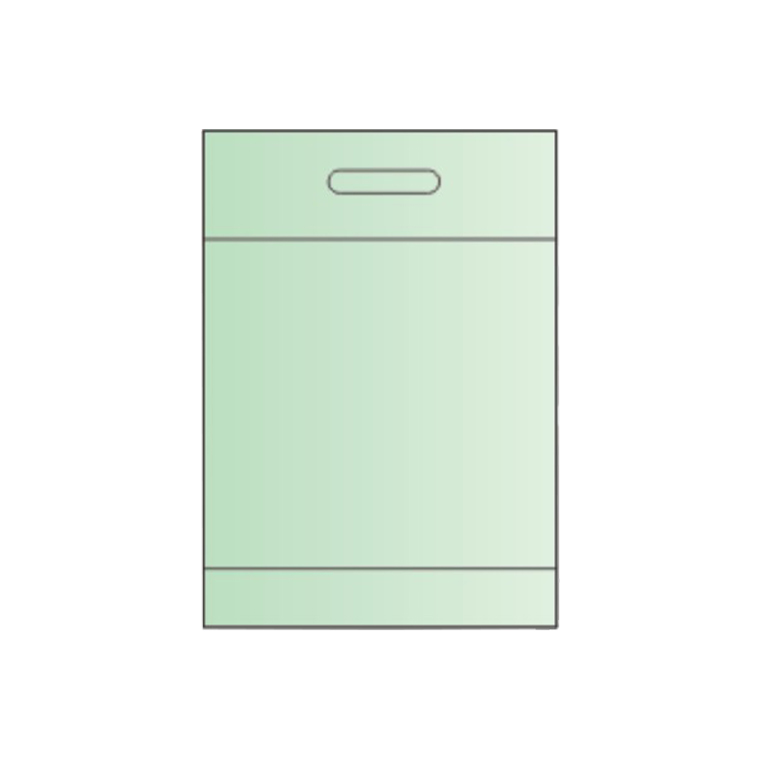

Die-cut Handle BagProduction Process
Machine Features
1Stable & Efficient
- Low noise, energy saving, easy operation
2Multi-Film Compatible
- Flexible bag-size adjustment
3Independent Patch System
- Precise patch positioning and firm bonding
4Patch Handle Specialist
- Single-function patch-handle bag production

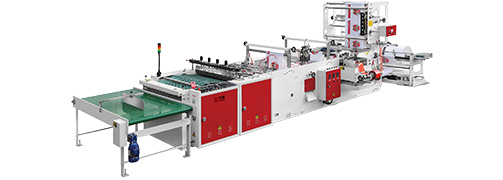

ModelKQ‑800SP
Web Running DirectionRight‑to‑Left
Bag‑making ModesPatch‑handle bag, hole‑punching bag
Sealing TypeHot‑cut edge sealing
Unwinding Width1600 mm
Unwinding DiameterΦ700 mm
Bag‑making Length (Bag Height)250‑750 mm
Bag‑making Width (Bag Width)100‑600 mm
Top Folding Edge50‑75 mm
Bottom Gusset20‑70 mm
Film ThicknessHDPE 0.02‑0.06 mm
LDPE 0.04‑0.1 mm
Patch Width155 mm
Patch Thickness (Single Layer)LDPE 0.1‑0.15 mm
Patch Unwinding DiameterΦ500 mm
Line Speed40 m/min
Mechanical Speed120 cycles/min
Bag‑making SpeedPatch‑handle bag: 60 pcs/min
Top‑fold hole‑punching bag: 80 pcs/min
Actual bag‑making speed subject to material properties.
Total PowerApprox. 10 kW
Power Supply3P, 380V, 50Hz
Operating NoiseApprox. 60 dB
Machine Overall Dimension8200×3100×1870 mm
Machine Weight3200 kg
Compressed Air7.5 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800SP design).
