KQ‑800LP Single‑function Soft Handle Bag Making Machine
Thermal side-seal machine for soft-loop handle and punch-hole bags. Compatible with multiple film materials, flexible size adjustment, stable, low-noise and energy-saving.
Max Speed60-80 pcs/min
Bag Width100-600 mm
Working Lines0.02-0.1 mm
Control SystemPLC + Touch Screen
Applicable Bag Types

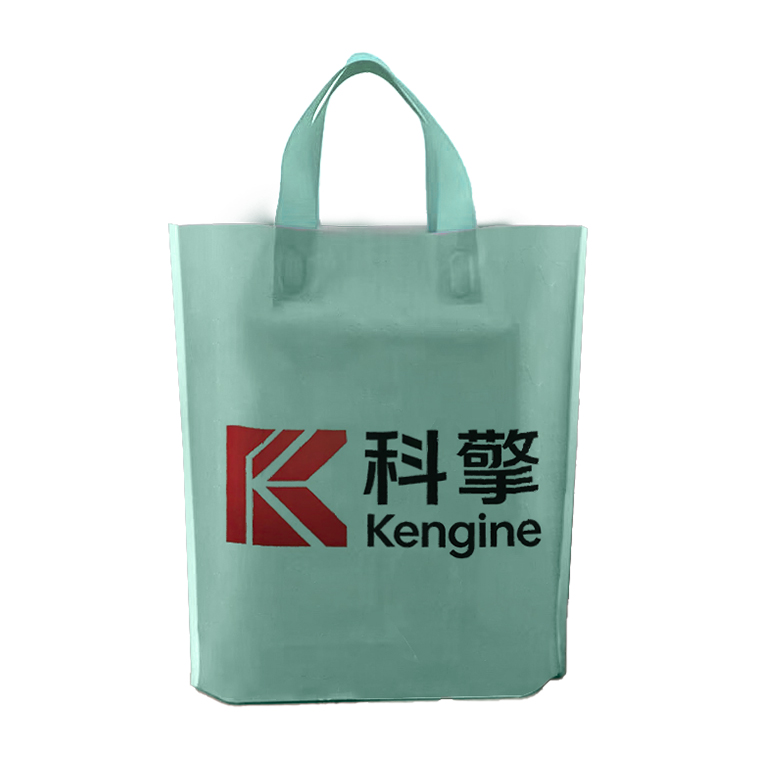

View All Bag Types →Soft‑handle Bag

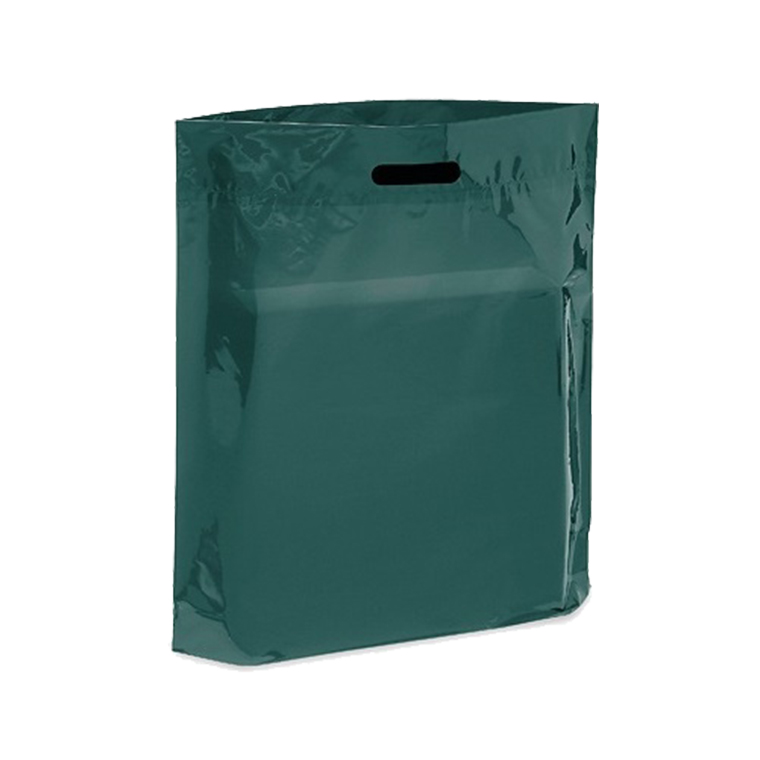

Hole‑punch PouchProduction Process
Machine Features
ModelKQ‑800LP
Web Running DirectionRight‑to‑Left
Bag‑making ModesHandle bag, hole‑punching bag
Sealing TypeHot‑cut edge sealing
Unwinding Width1600 mm
Unwinding DiameterΦ700 mm
Bag‑making Length (Bag Height)250‑750 mm
Bag‑making Width (Bag Width)100‑600 mm
Top Folding Edge50‑75 mm
Bottom Gusset20‑70 mm
Film ThicknessHDPE 0.02‑0.06 mm
LDPE 0.04‑0.1 mm
Handle Unwinding Width360 mm
Handle Thickness0.08‑0.25 mm
Handle Unwinding DiameterΦ500 mm
Line Speed40 m/min
Mechanical Speed120 cycles/min
Bag‑making SpeedSoft handle bag: 60 pcs/min
Top‑fold hole‑punching bag: 80 pcs/min
Actual bag‑making speed subject to material properties.
Total PowerApprox. 10 kW
Power Supply3P, 380V, 50Hz
Operating NoiseApprox. 60 dB
Machine Overall Dimension6200×3100×1870 mm
Machine Weight3200 kg
Compressed Air7.5 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800LP design).
