Soft‑handle BagKQ-800ZD
KQ‑800ZD Automatic Four‑function Handle Bag Making Machine
Versatile four-function machine producing soft-handle, hard-handle, punch and patch bags in one integrated line. Compact and efficient for diverse handle-bag orders.
Max Speed60-80 pcs/min
Bag Width100‑600 mm
Working Lines0.02‑0.1 mm
Control SystemPLC + Touch Screen
Applicable Bag Types
View All Bag Types →Soft‑handle Bag

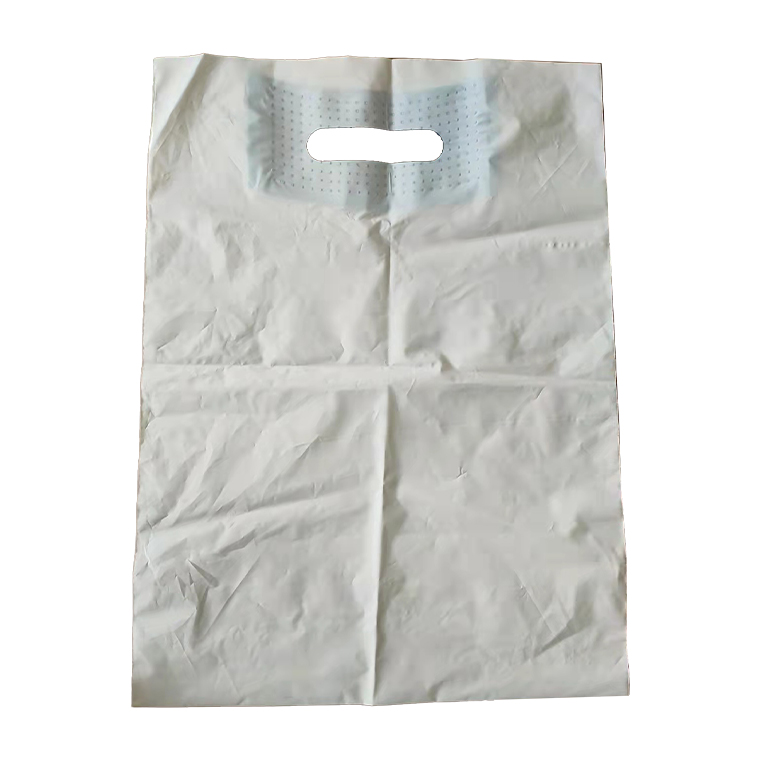

Patch Handle Bag

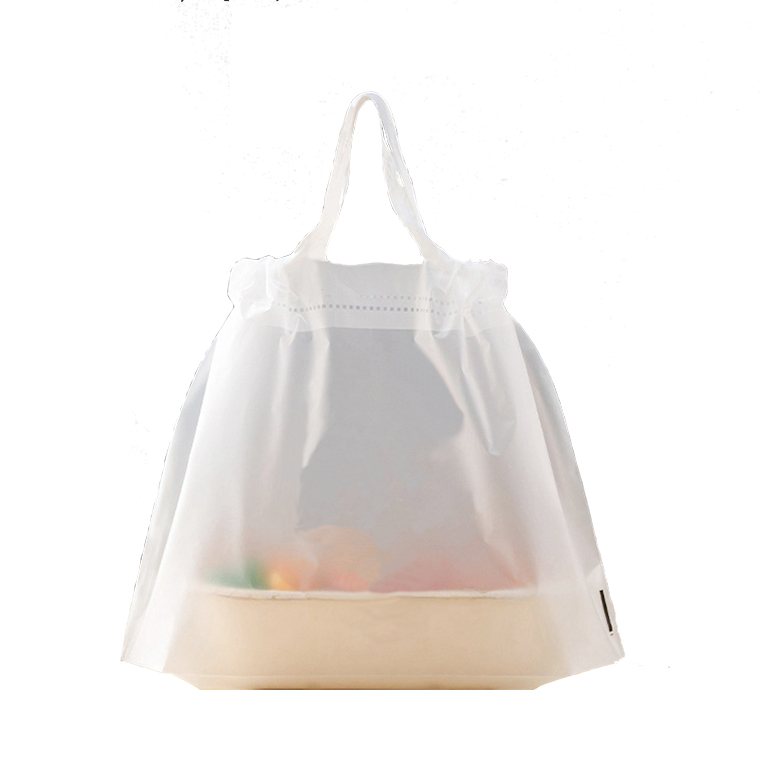

Drawstring Bag
Hole‑punch PouchProduction Process
Machine Features
ModelKQ‑800ZD
Web Running DirectionRight‑to‑Left
Bag‑making ModesHandle bag, patch handle bag, drawstring bag, hole‑punching bag
Sealing TypeHot‑cut edge sealing
Unwinding Width1600 mm
Unwinding DiameterΦ700 mm
Bag‑making Length (Bag Height)250‑750 mm
Bag‑making Width (Bag Width)100‑600 mm
Top Folding Edge50‑75 mm
Bottom Gusset20‑70 mm
Film ThicknessHDPE 0.02‑0.06 mm
LDPE 0.04‑0.1 mm
Patch Width155 mm
Patch Thickness (Single Layer)LDPE 0.1‑0.15 mm
Patch Unwinding DiameterΦ500 mm
Handle Unwinding Width360 mm
Handle Thickness0.08‑0.25 mm
Handle Unwinding DiameterΦ500 mm
Drawstring Unwinding Width25 mm
Drawstring Thickness0.08‑0.2 mm
Drawstring Unwinding DiameterΦ500 mm
Line Speed40 m/min
Mechanical Speed120 cycles/min
Bag‑making SpeedSoft handle bag: 60 pcs/min
Patch handle bag: 60 pcs/min
Drawstring poly bag: 65 pcs/min
Top‑fold hole‑punching bag: 80 pcs/min
Actual bag‑making speed subject to material properties.
Total PowerApprox. 13 kW
Power Supply3P, 380V, 50Hz
Operating NoiseApprox. 60 dB
Machine Overall Dimension8200×3100×1870 mm
Machine Weight3500 kg
Compressed Air7.5 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800ZD design).
