Coffee Valve Bag Sample 4Applicable Bag Types
View All Bag Types →Coffee Valve Bag Sample 4

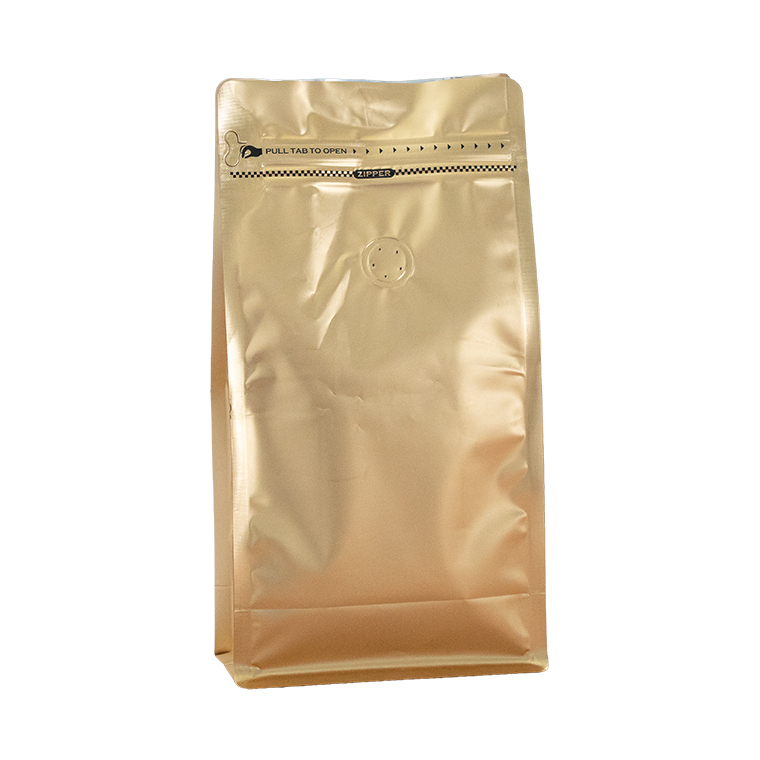

Coffee Valve Bag Sample 3
Coffee Valve Bag Sample 1
Coffee Valve Bag Sample 2Production Process
Machine Features
1Operator Safety
- Optimized structure improves operator safety versus traditional designs
2Quick Mold Change
- Mold change completed within 20 minutes
3High Yield
- Qualified rate ≥99.8% with fault rate ≤0.5%
4Dual-Station Layout
- Two welding stations boost capacity and balance workload

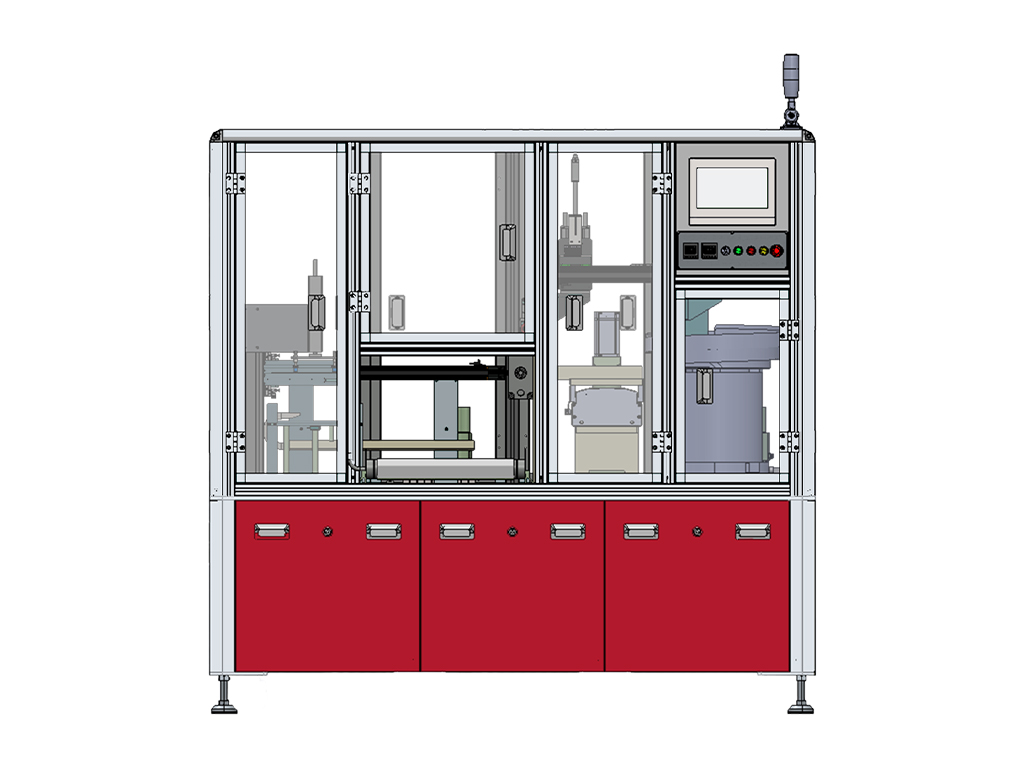

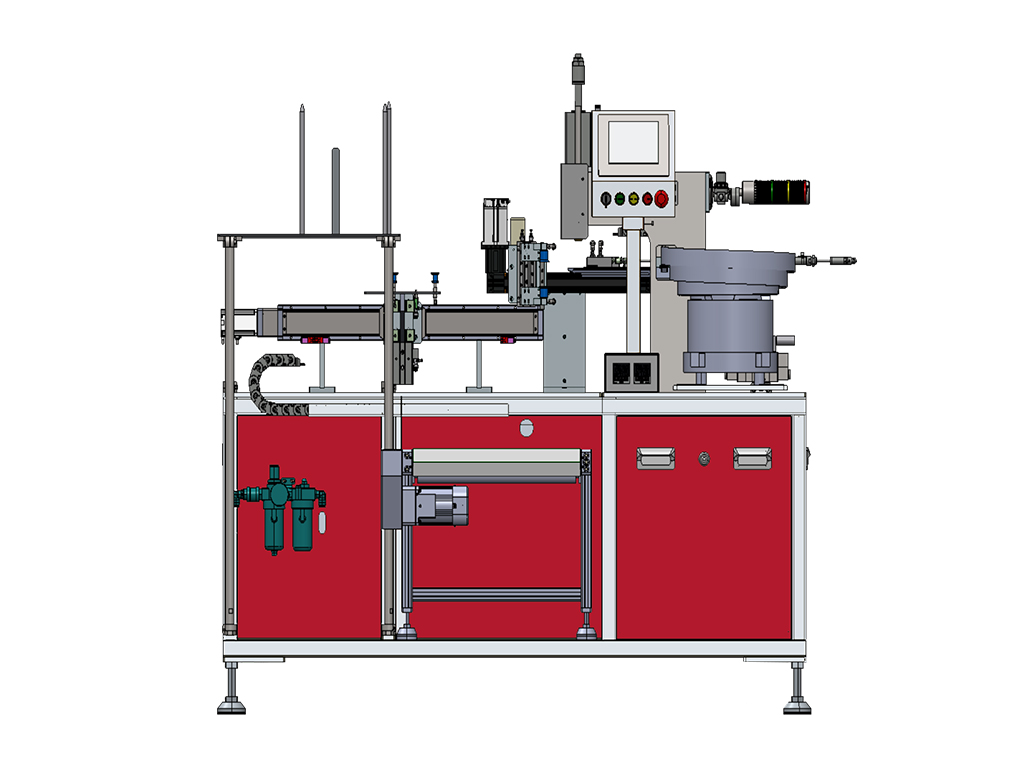

ModelKQ-1800-2 (dual station )
Voltage requirement220V , 50HZ
Operation power4.0KW
Air supply0.5-1.0 MPA
Working temperature0-40℃
Humidity≤60%
Floor requestflattening
Machine dimension1800×1500×1800mm
Total Weight1000kg
Mould replace timeWithin 20mins
Rate of qualification≥99.8%
Fault rate≤0.5%
Capacity of production1800-2200PC/H
Standard bag size rangeA: 120-400mm B:70-200mm C:60-200mm
Configurable and optional features (all adjustable per the KQ1800-2 design).
Download brochures, certificates and technical files for KQ1800-2.
Send Us an Inquiry
Please fill in the form below and our sales team will contact you as soon as possible.
Need the Full Brochure?
Get the complete KQ1800-2 brochure and operation manual with all drawings and specs.
