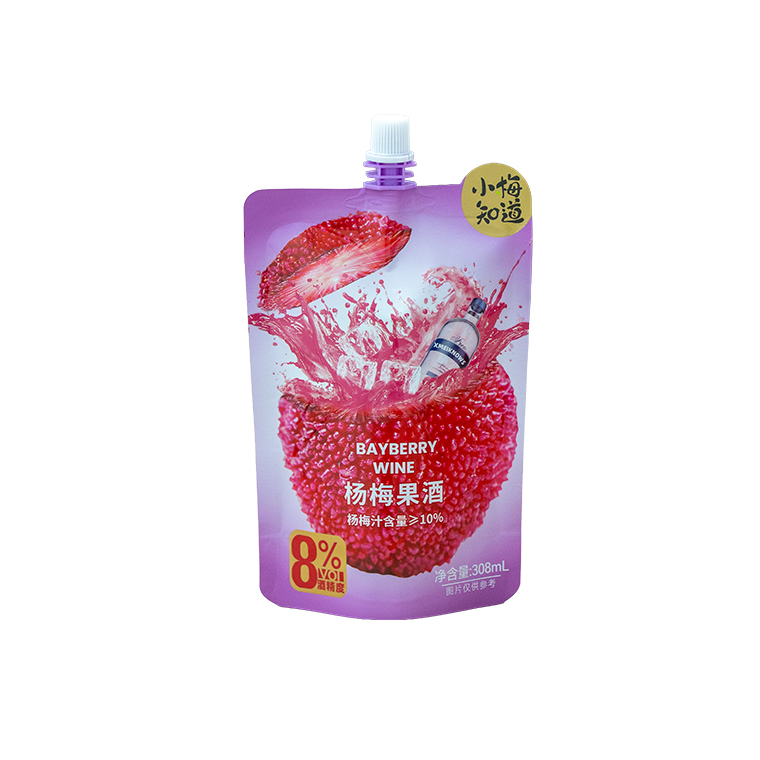

Spout Pouch Sample 2Applicable Bag Types
View All Bag Types →Spout Pouch Sample 2

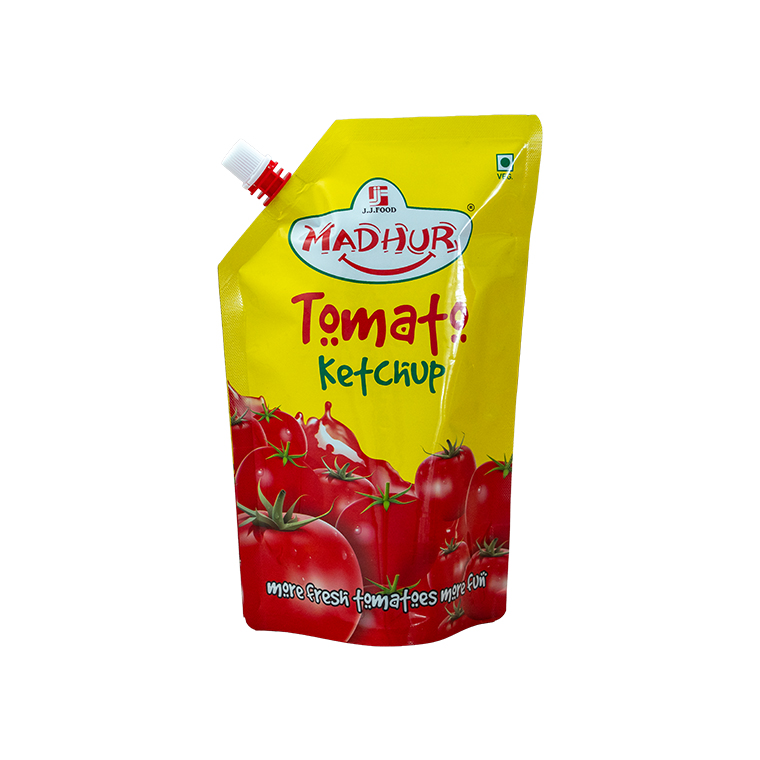

Spout Pouch Sample 1

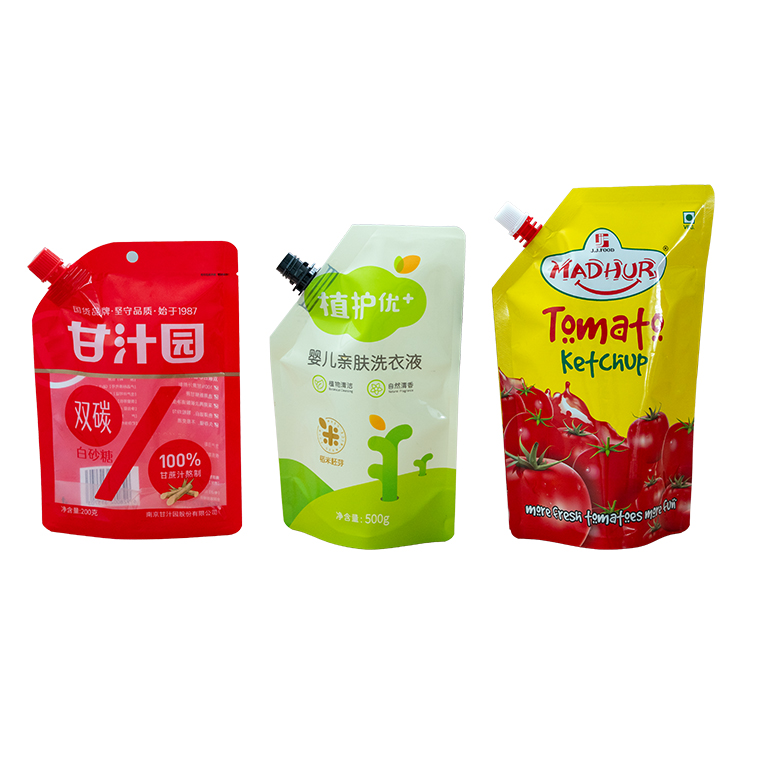

Spout Pouch Sample 4

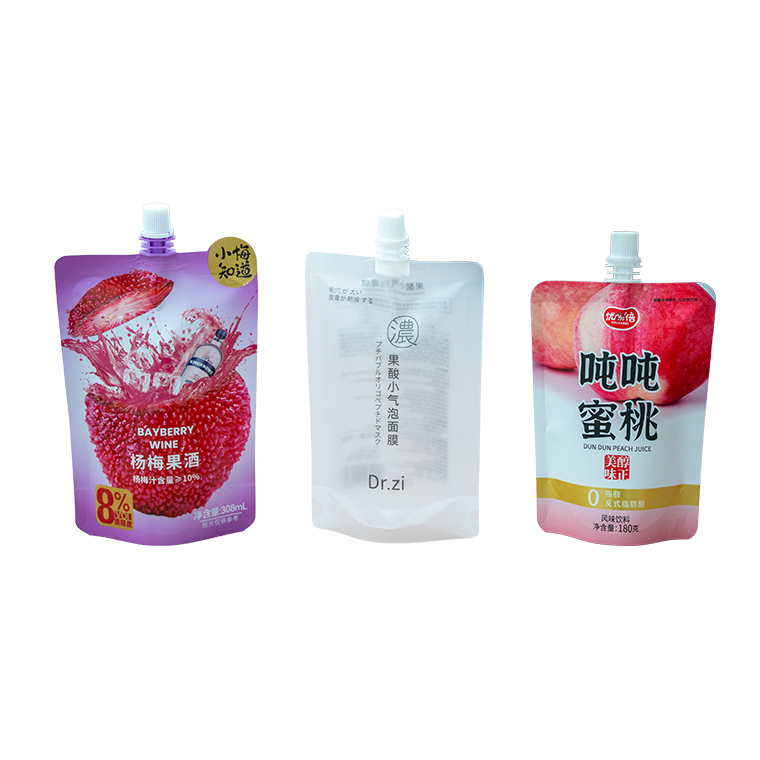

Spout Pouch Sample 3Production Process
Machine Features

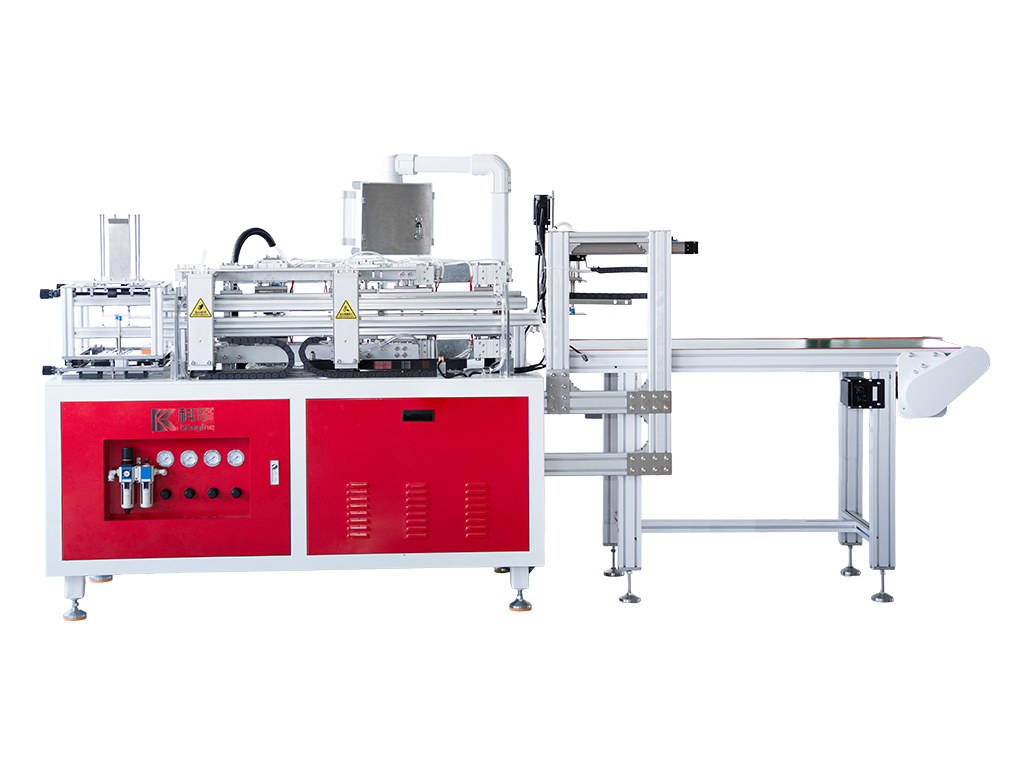

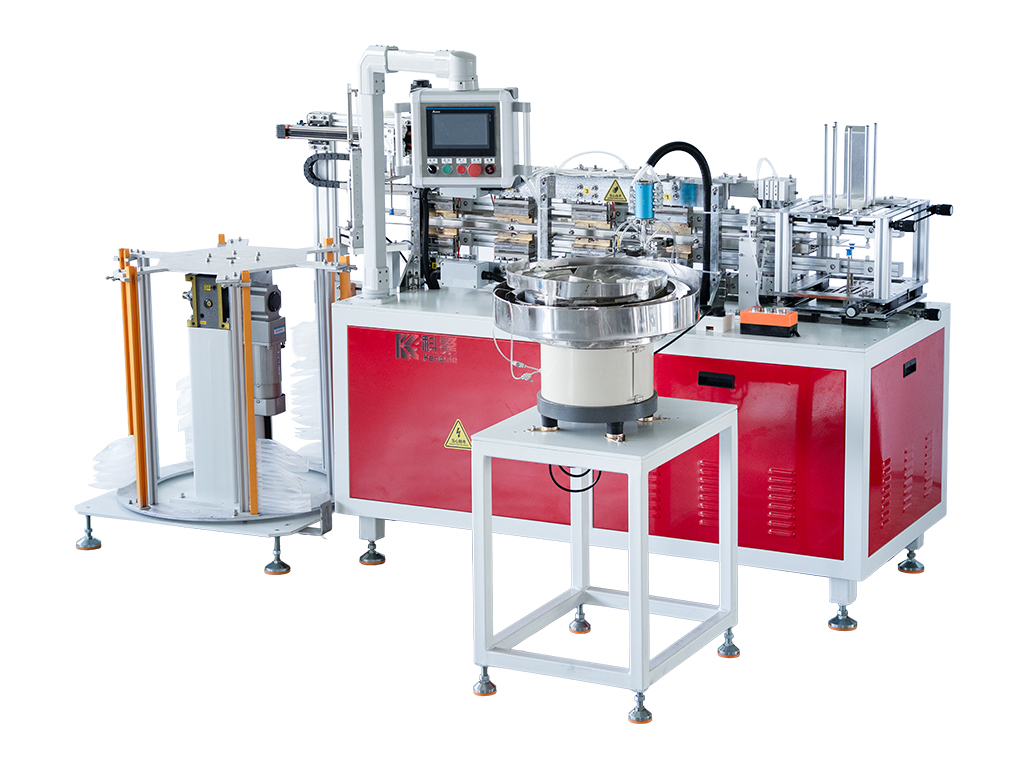

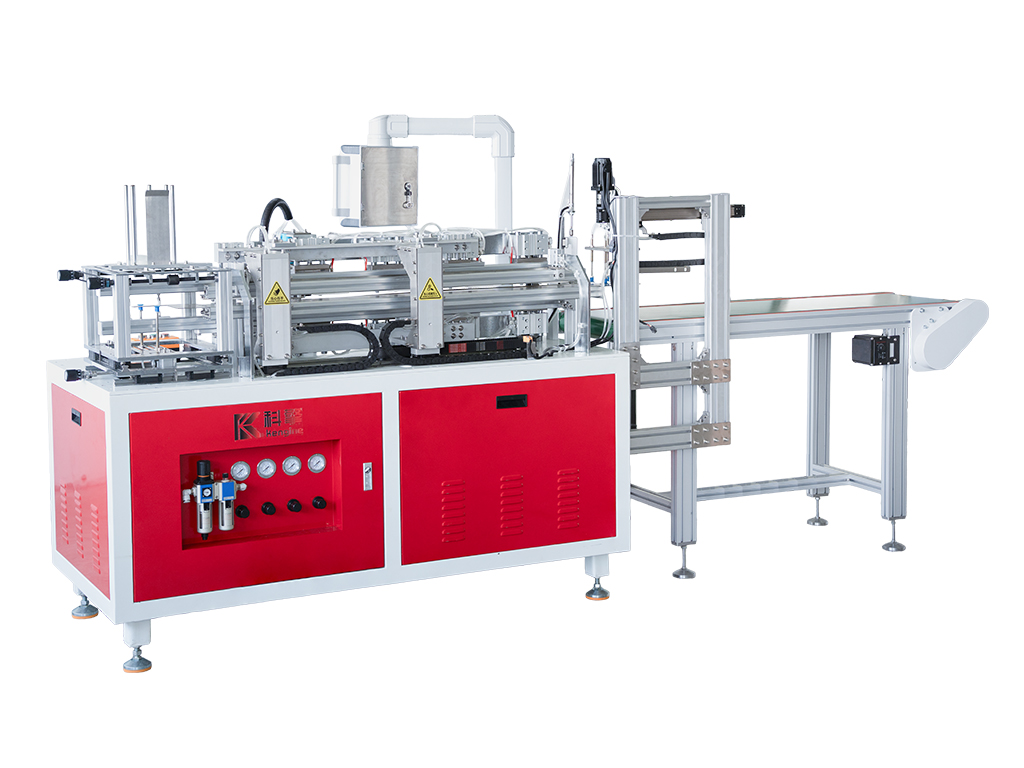

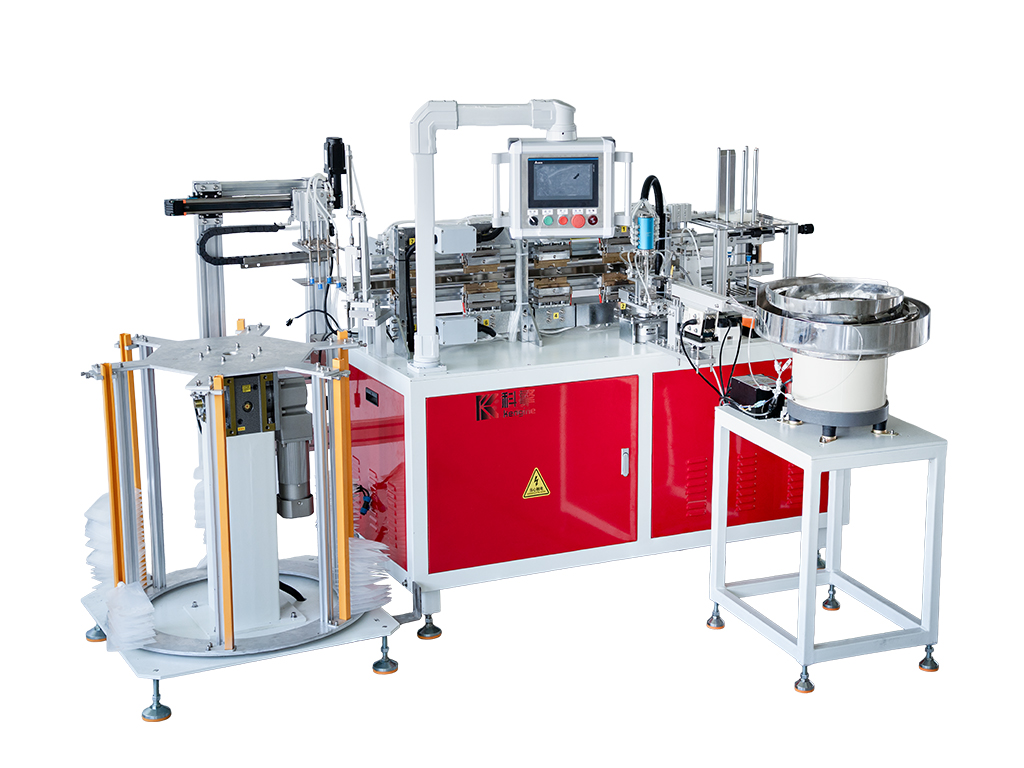

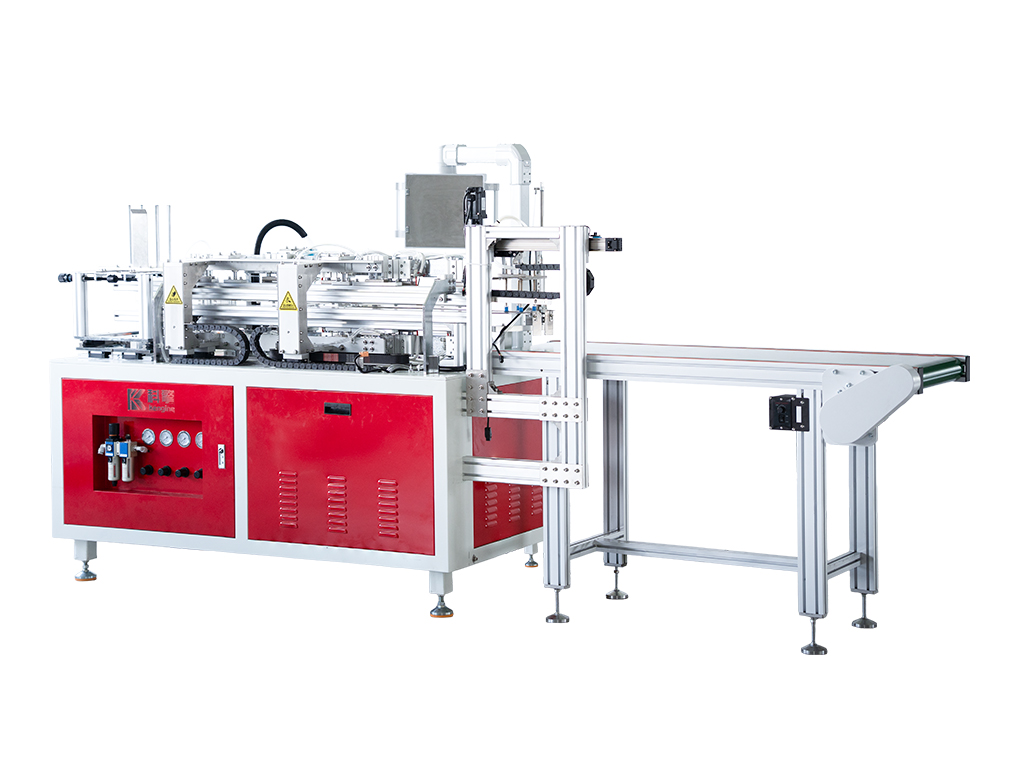

ModelKQ‑2601A
Web Running DirectionRight‑to‑Left
Spout Welding TypeStraight‑spout laminated pouch, Angle‑spout laminated pouch
Sealing TypeHeat Sealing
Straight‑spout Pouch SizeW (70‑160 mm) L (80‑260 mm)
Angle‑spout Pouch SizeW (100‑160 mm) L (120‑260 mm)
Spout Inner Diameter6‑15 mm
Mechanical Speed55 pcs/min
Spout Welding Speed25‑50 pcs/min
Actual speed depends on material properties.
Total Power (approx.)4.5 kW
Power Supply220 V, 50 Hz
Operating NoiseApprox. 60 dB
Machine Weight1100 kg
Compressed Air5‑7 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-2601A design).
