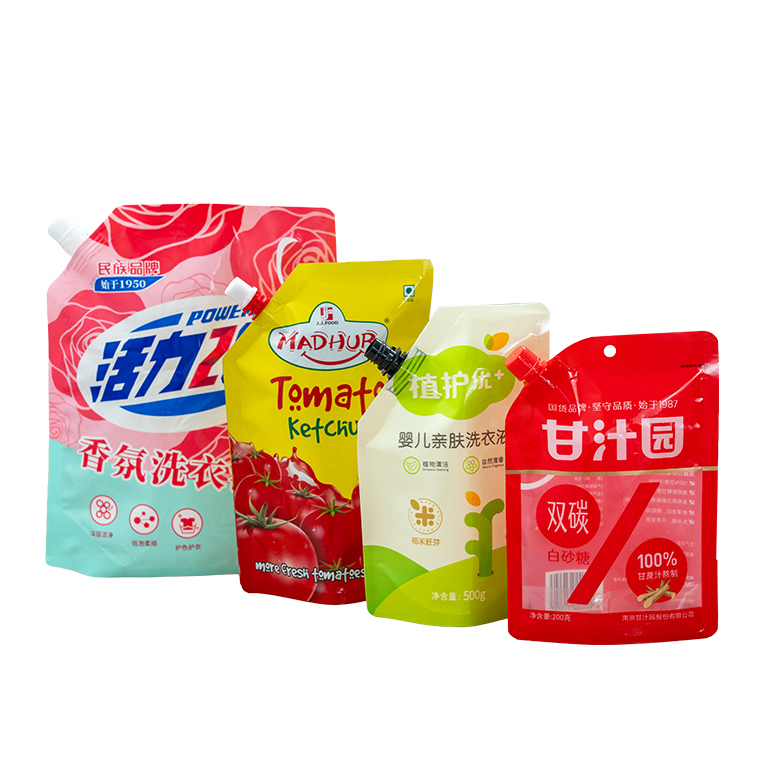

Spout Pouch SampleApplicable Bag Types
View All Bag Types →Spout Pouch Sample
Spout Pouch SampleProduction Process
Machine Features
1Wide Size Range
- Straight/oblique bags W180-350 x L160-400mm spout bore 8-22mm
2Multi-Spout Compatibility
- Runs oblique-spout and straight-spout composite bags plus beverage spout pouches
3Strong Neat Heat Seal
- Professional heat-sealing process produces firm, beautiful seals on every cycle
4Full Servo Control
- Fully automatic servo drive for simple operation and stable, reliable heat sealing

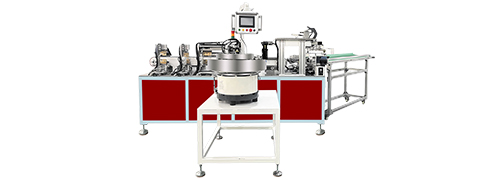

ModelKQ‑2608C
Web Running DirectionRight‑to‑Left
Spout Welding TypeAngle‑spout laminated pouch, Straight‑spout laminated pouch
Sealing TypeHeat Sealing
Straight‑spout Pouch SizeW (180‑350 mm) L (160‑400 mm)
Angle‑spout Pouch SizeW (180‑350 mm) L (160‑400 mm)
Spout Inner Diameter8‑22 mm
Mechanical Speed45 pcs/min
Spout Welding Speed45 pcs/min
Actual speed depends on material properties.
Total Power (approx.)6.5 kW
Power Supply220 V, 50 Hz
Operating NoiseApprox. 60 dB
Machine Overall Dimension4600×2200×1800 mm
Machine Weight1800 kg
Compressed Air5‑7 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-2608C design).
