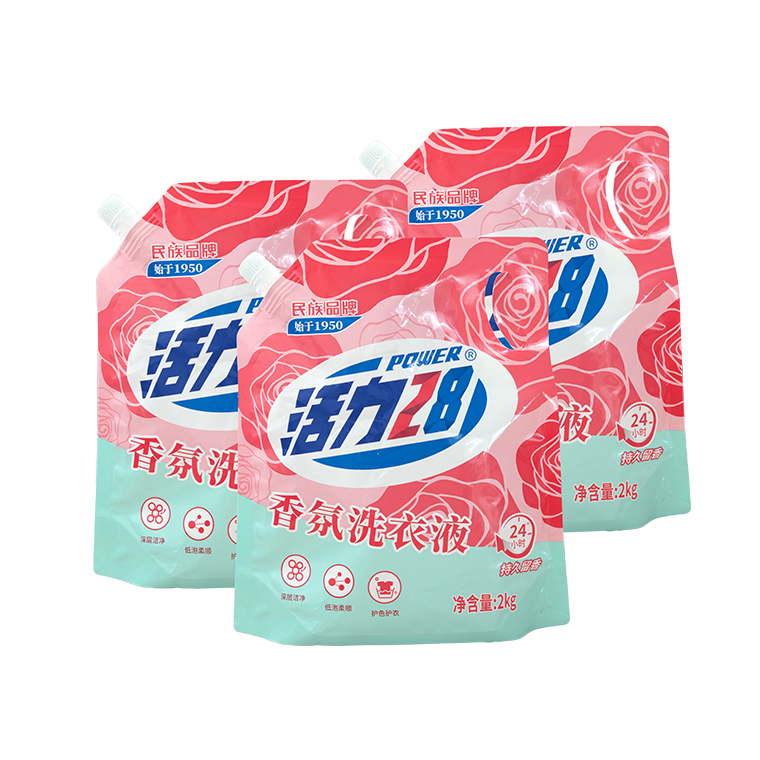

Large Spout PouchApplicable Bag Types
View All Bag Types →Large Spout PouchProduction Process

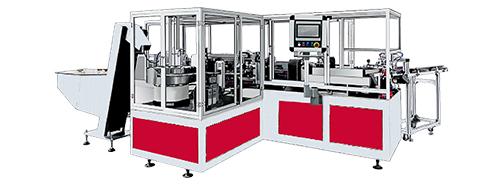

Machine Features
1Steady Output
- Production speed of 45-50 pieces per minute
2Rigid Spout Welding
- Welds snap-fit short plastic spouts from Φ6-25 mm
3Automatic Angle Cutting
- Cuts pouch top at 20°-45° before spout welding
4Large-Format Pouches
- Handles bigger pouches up to 320 mm long and 250 mm wide
Pouch SizeAngled‑spout pouch: L×W=(120‑320)×(100‑250) mm
Applicable Spout Types① Bayonet‑type, short plastic spout (cap availability customizable)
② Spout diameter Φ6‑25 mm
② Spout diameter Φ6‑25 mm
Corner‑cut Angle20°‑45°
Power SupplyAC380V, 50Hz
Total Power11 kW
Compressed Air0.5‑0.7 MPa, 250 NL/min
Machine Overall DimensionL×W×H: 5700×3000×1900 mm
Machine Weight2000 Kg
Production EfficiencyAngled‑spout pouch: 45‑50 pcs/min
NoteProduction efficiency varies with materials and pouch dimensions.
Configurable and optional features (all adjustable per the KQ-2608B design).
Download brochures, certificates and technical files for KQ-2608B.
